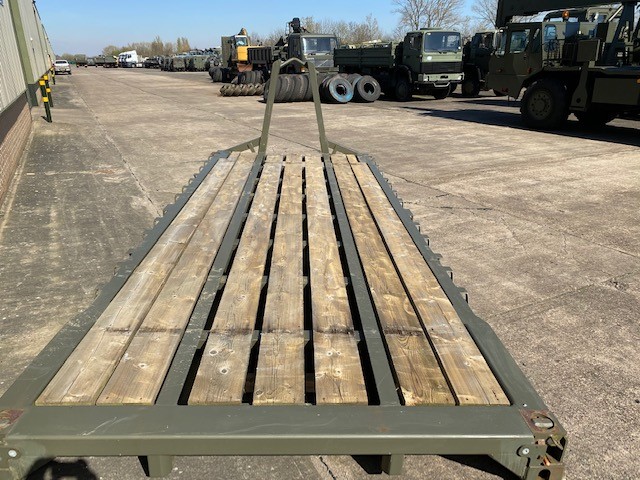

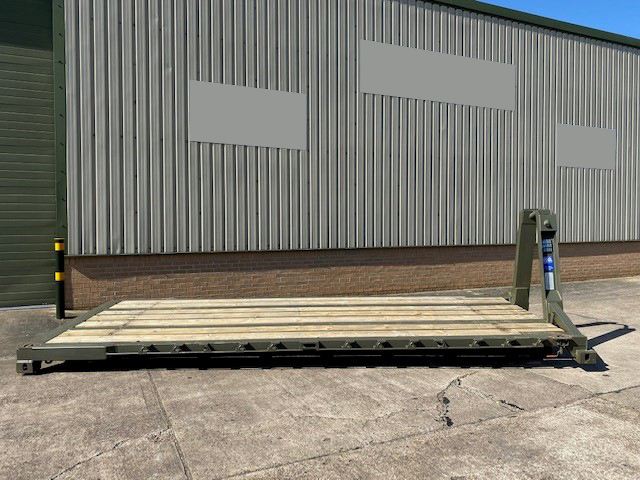

Drops 20ft ISO Flat Racks

MoD Ref: 50316

Drops 20ft ISO Flat Racks - ex military vehicles for sale, mod surplus

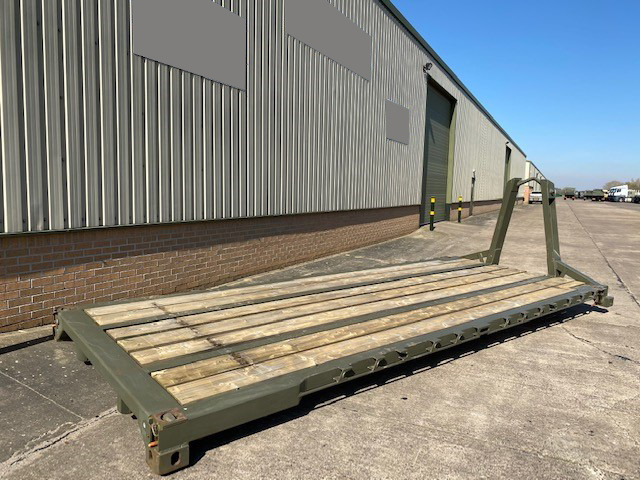

Just arrived direct from the MoD, in unused condition. 20ft ISO Flat Racks.

They can carry standard cargo, or 20ft ISO containers utilising the deployable integrated twist locks.

They feature:

Roping/load restraint points along full length of side rails

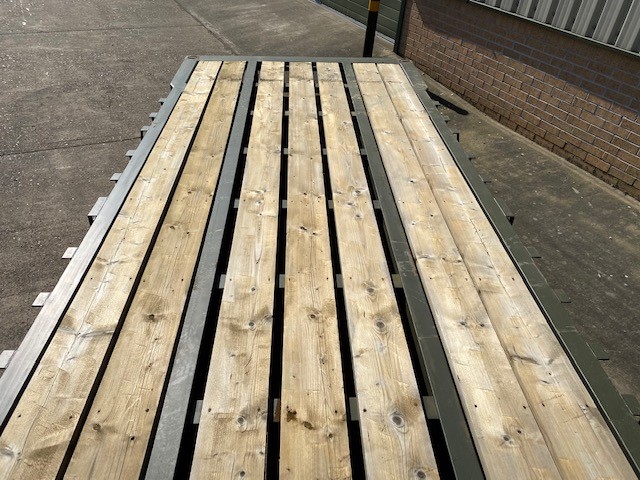

Heavy duty wooden boarding

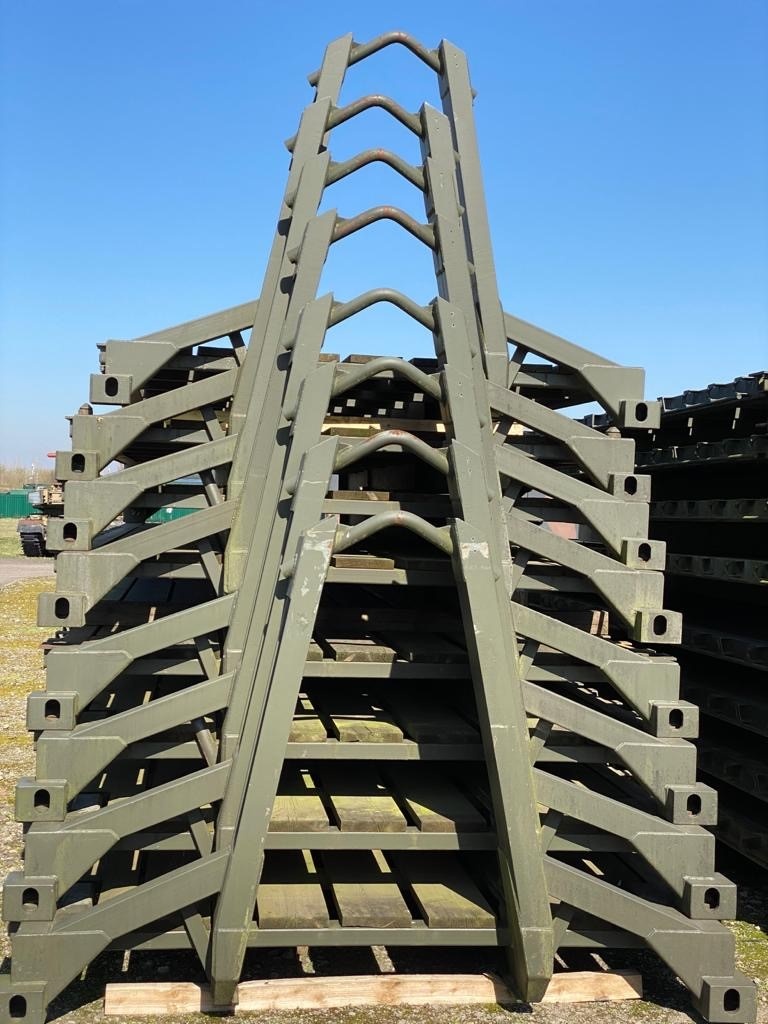

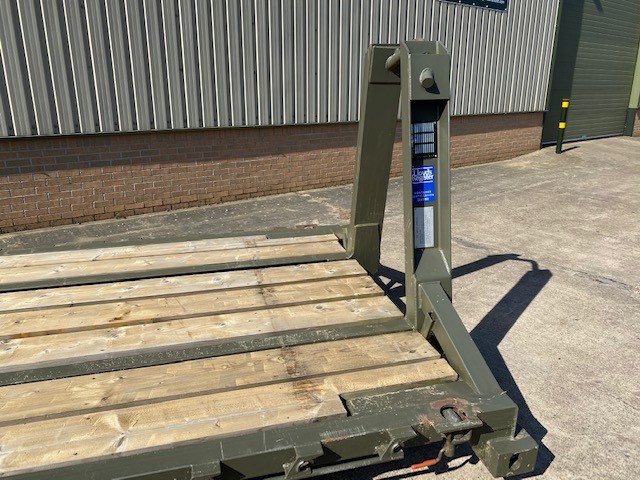

Easy pickup A Frame - Provided the hook of the load handling system is positioned within the capture area of the “A” frame when loading it will never fail to safely engage.

Front upward facing twist locks, with retractable rear ISO twist locks

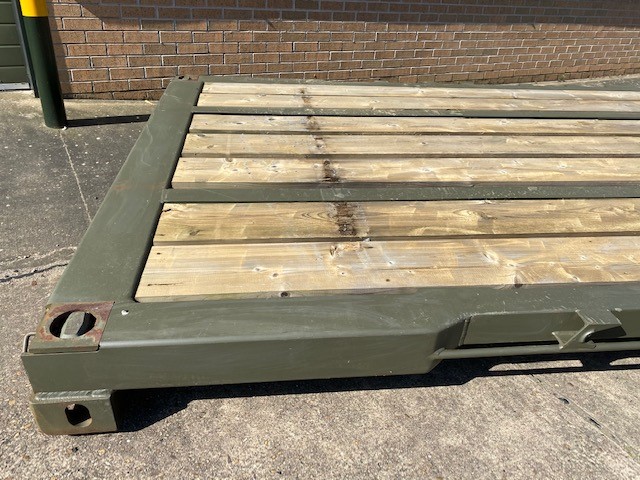

Downward facing ISO corner castings

UPN internal subframe

Mechanical stop for locking to bed of truck

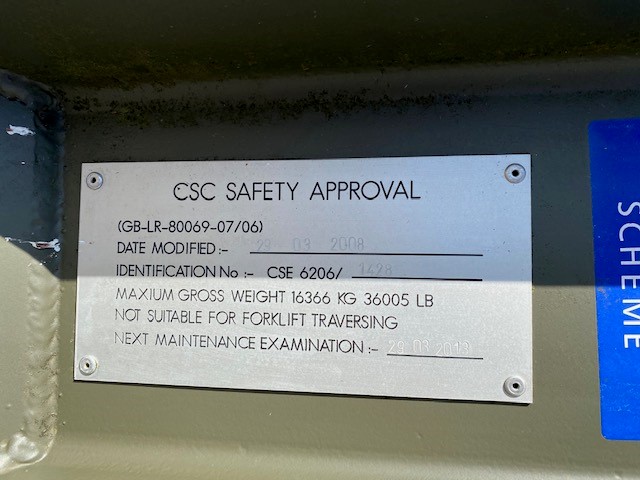

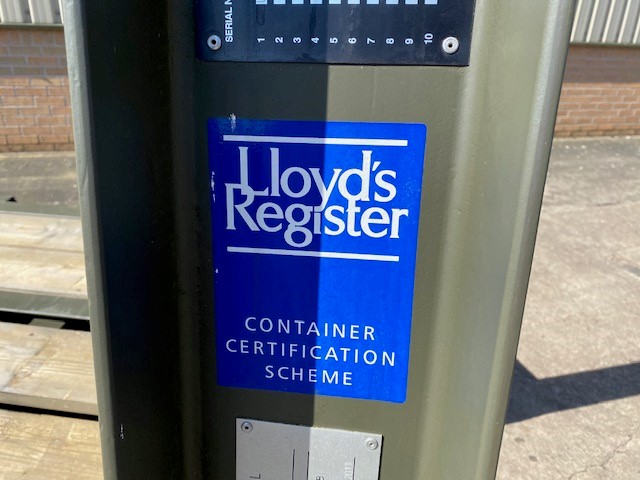

Lloyds/CSC plated

16,366kg Maximum Gross weight capacity

Dimensions (Approx.)

Length: 6.05m (Overall – ISO closed)
Bed Length: 5.87m
Overall length:6.25m (ISO leg extended)
Width: 2.44m (Overall)
Width of bed: 2.40m
Height: 1.63m (Floor to top of capture hook)
Height: 1.35m (Bed to top of capture hook)
Weight: 1,500kg (Approx)
Rail Width: 0.9m (Internal) 1.06m (outside subframe)

Like on Facebook
VIDEOS (if available)
CATEGORY Miscellaneous
MANUFACTURER Marshalls
ENGINE n/a
GEARBOX n/a
BRAKES n/a
STEERING n/a
TYRES n/a
MAXIMUM LOAD 16,366kg
ELECTRICS n/a
L x W x H 6.05 x 2.44m x 1.63m
GROSS WEIGHT 1,500kg approx
HOURS / MILEAGE 0
DATE INTO SERVICE 2008
YEAR OF MANUFACTURE 2008

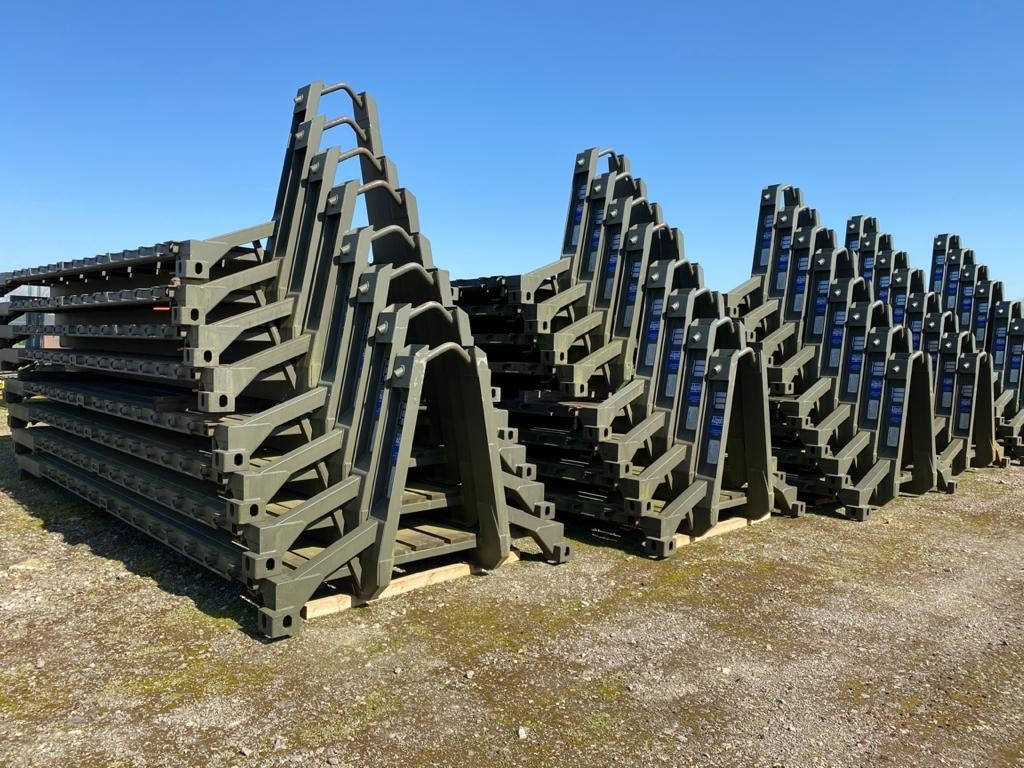

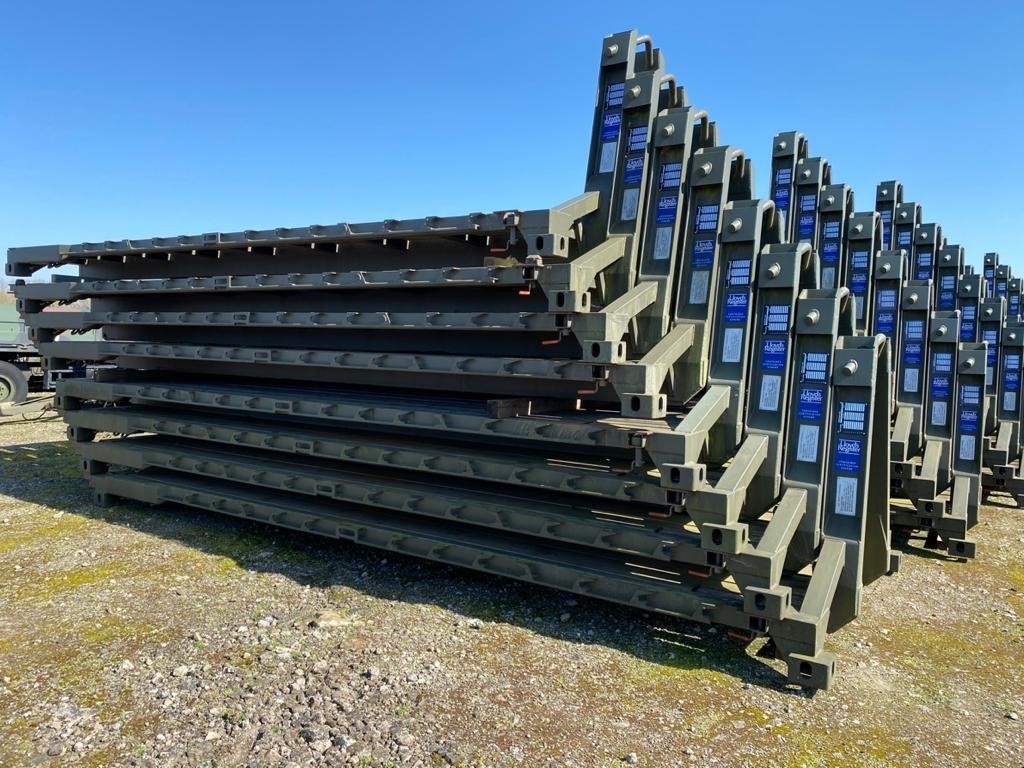

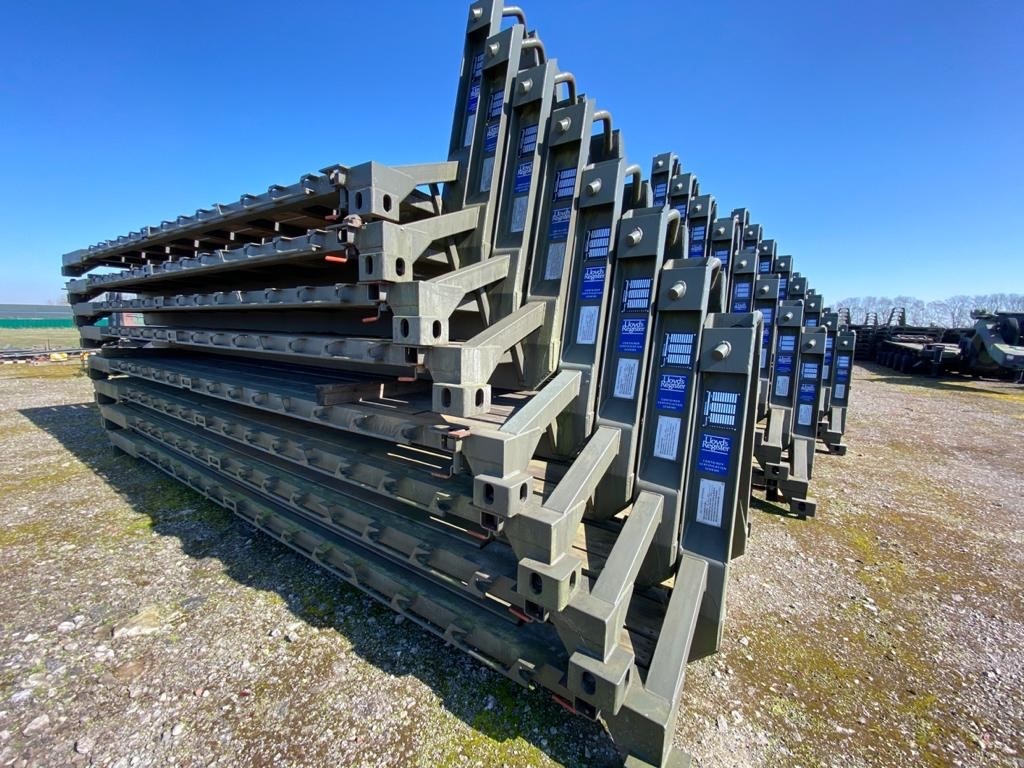

QTY AVAILABLE 100
EXPORT REQUIREMENTS ...more SIEL
