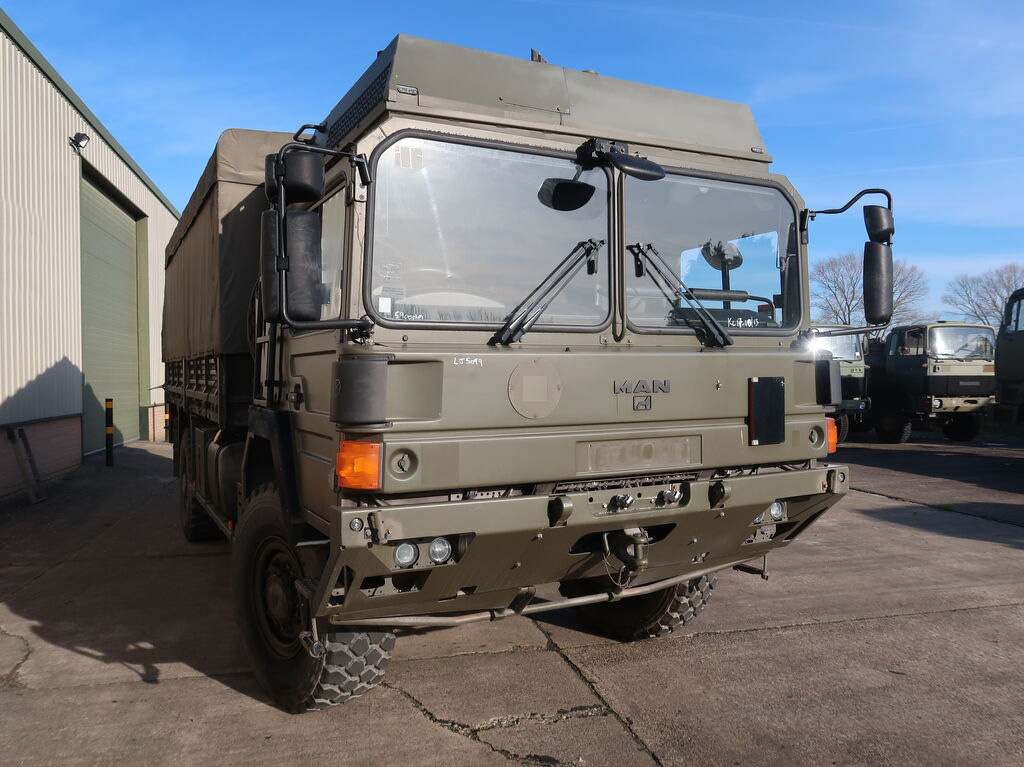

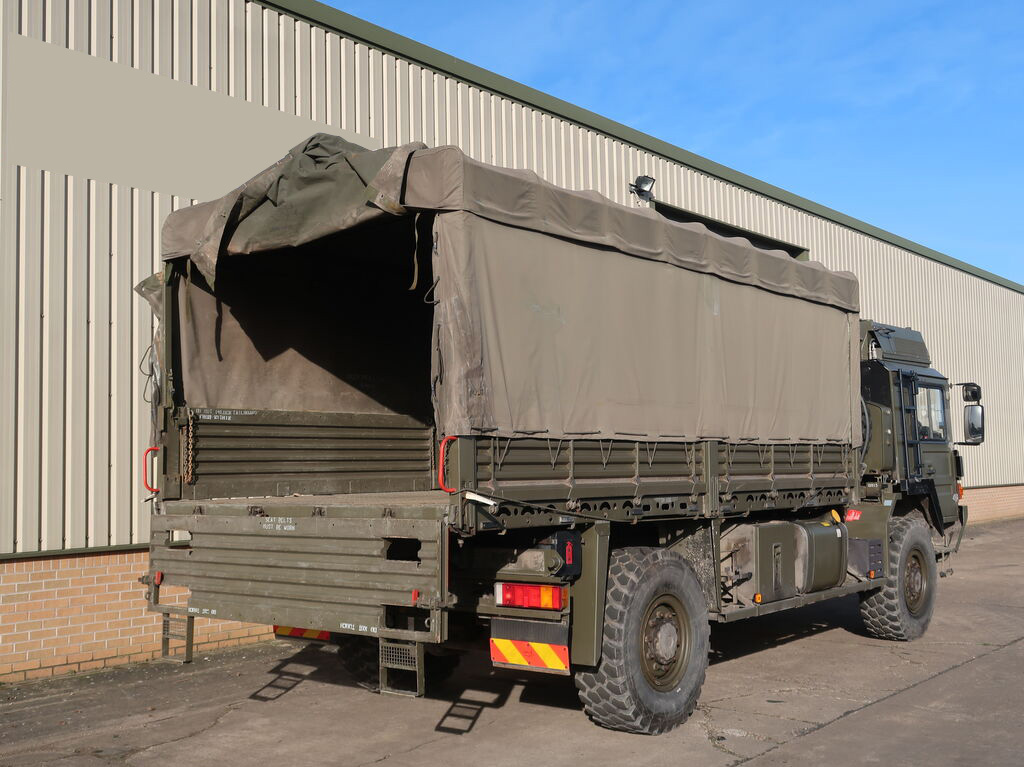

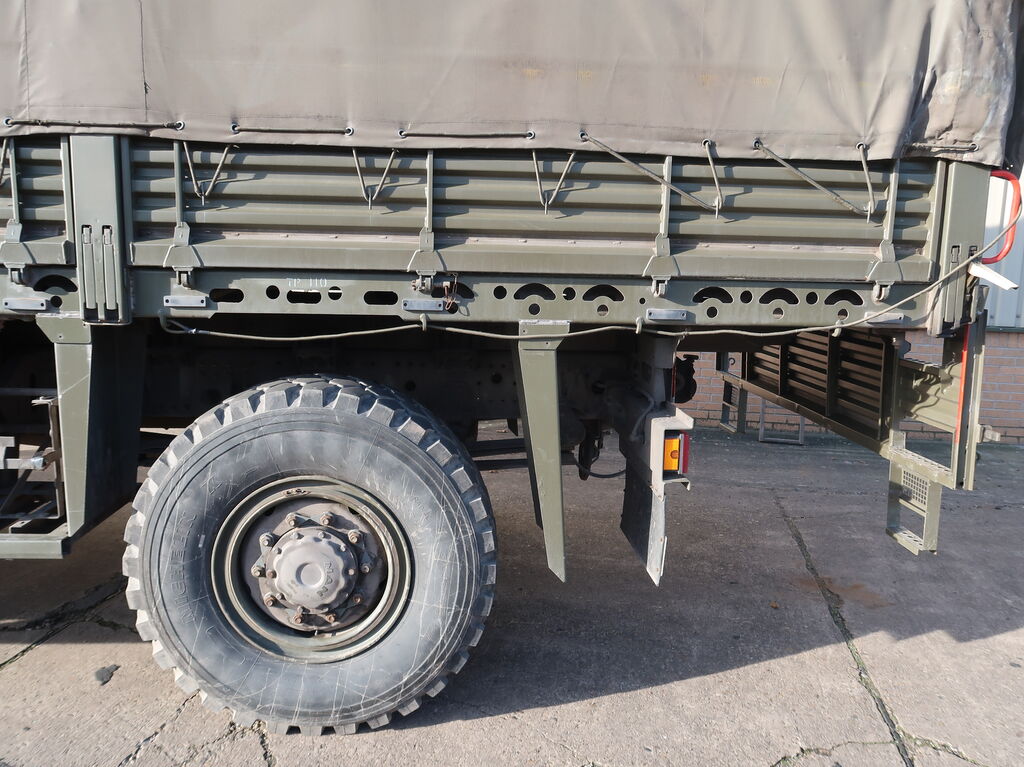

MAN HX60 18.330 4x4 Drop Side Cargo Truck

MoD Ref: 50312

MAN HX60 18.330 4x4 Drop Side Cargo Truck - ex military vehicles for sale, mod surplus

MAN HX60 18.330 4x4 RHD cargo trucks

The latest and current in service truck with the military these vehicles are built to a high specification. We have a choice of vehicles available with mileages from 10,000-60,000 kilometres only.

  • Engine: MAN turbocharged diesel engine, developing 326 hp
  • Gearbox: ZF 12-speed automatic gearbox
  • Payload 6 tons, Gross weight 18 tons
  • Suspension: Steal leaf springs front & rear

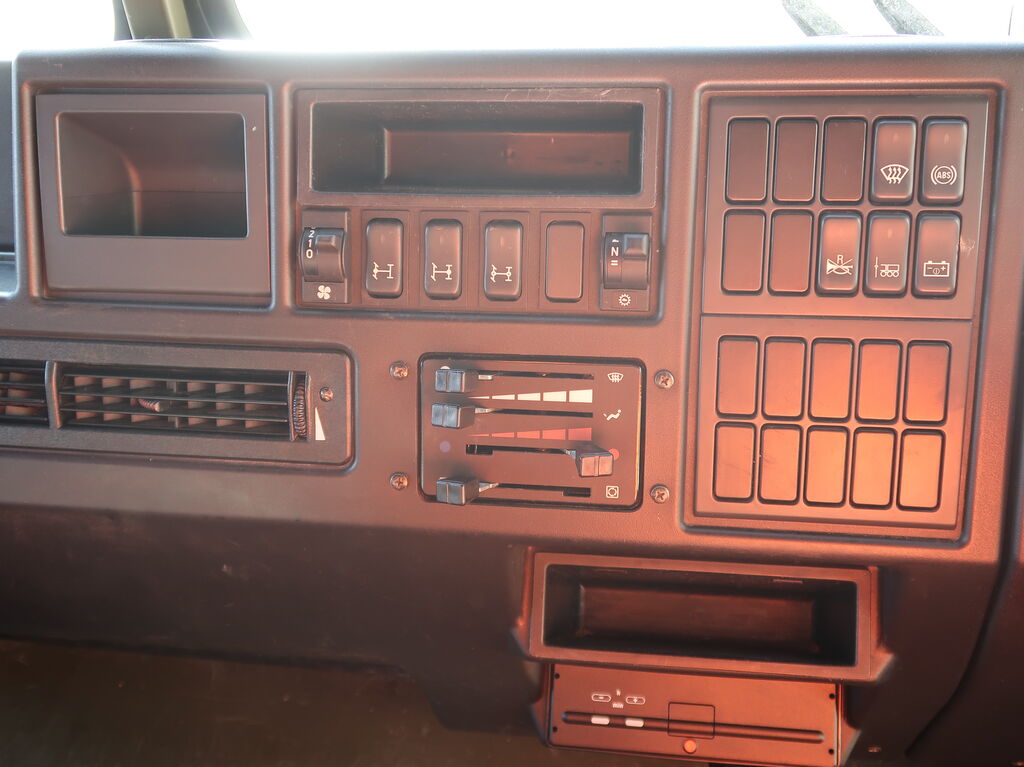

  • Air conditioned cab
  • The MAN HX60 is fitted with an all-steel solid modular cab. The same cab is used across the HX and SX ranges of military trucks. It provides seating for driver and two passengers. There is an observation hatch on the roof. It was used to mount a light machine gun. Separated windscreens are designed for easier replacement. Also these are installed vertically in order to minimize light reflections.

    The MAN HX range is based on the automotive components of commercial MAN TGA heavy truck range. The HX60 is powered by a MAN turbocharged diesel engine, developing 326 hp. It meets EURO IV emission requirements. The engine is located behind and under the cab. This feature allowed to reduce height of the vehicle. Also such location protects damage of the radiator or blockage with mud. All models are fitted with ZF 12-speed automatic gearbox. A central tyre inflation system is proposed as an option. Without preparation the MAN HX60 fords water obstacles up to 1.2 m deep. With preparation it can ford up to 1.5 m. Vehicle can operate in climatic conditions, ranging from -32??C to +50??C. The MAN HX60 can be airlifted by the C-130 Hercules cargo aircraft with little preparation.

    We are experiencing a lot of enquiries for these chassis for use as the base for expedition overland vehicles and we are fortunate enough to have a stock available so whether you are seeking to buy one of the trucks and build your own body or if you want the chassis with a basic empty (dry freight) body or even a complete build then get in touch with us.

    See our new 60 sec video below.

    Fleet and Governmental orders welcome, Click Here for More

    Like on Facebook
    VIDEOS (if available)
    Video of MAN HX60 18.330 4x4 Drop Side Cargo Truck
    CATEGORY Cargo Trucks
    MANUFACTURER MAN
    ENGINE MAN D0836 LFG50 326HP 6 Cyl Euro 4
    GEARBOX ZF AS 1210 Automatic
    BRAKES Air over Hydraulic
    STEERING PAS RHD
    TYRES 14.00R20
    MAXIMUM LOAD 6,000kg
    ELECTRICS 24v
    L x W x H x x
    GROSS WEIGHT 18,000kms
    HOURS / MILEAGE 12,430 miles
    DATE INTO SERVICE
    YEAR OF MANUFACTURE 2008
    QTY AVAILABLE 5
    EXPORT REQUIREMENTS ...more SIEL
    PRICE On Application - click for quote
