Atlas/AMSS K Loader Aircraft Main Deck Loader

MoD Ref: 50322

Atlas/AMSS K Loader Aircraft Main Deck Loader - ex military vehicles for sale, mod surplus

Atlas K Loader Aircraft Main Deck Loaders

Direct from the RAF in excellent condition, choice of 2 Units available in stock

Fully air-transportable in C130 Hercules aircraft, the ATLAS ?K Loader? is purpose designed for military tactical and strategic logistics support.

Capable of lifting materiel between C130 cargo height up to Boeing 747 main deck, this loader lifts almost twice its own self weight with a payload of up to 20 tonnes

Aircraft capability

All aircraft cargo doors with sill heights of 990mm to 5,590mm, Optional pallet dolly interface trailer, height range 480mm to 1,000mm, Forward drop nose assemblies allowing interface with narrow lower lobe freight doors

Operational capability Load Capacity - 18,000kg, Maximum Gradient Unladen 1 in 4 (25%) Laden 1 in 14 (8%), Speed Range: Unladen forward maximum 32kph; Unladen reverse limited to 10kph; Load platform elevated limited to 15kph, Environmental envelope -25?C to +50?C

Air-portable configuration Length 10,130mm, Width ? Platform 2,870mm ? Over Tyres 2,580mm, Height 2,430mm, Unladen Weight 11,350kg ,Wheel Load (average) 2,750kg

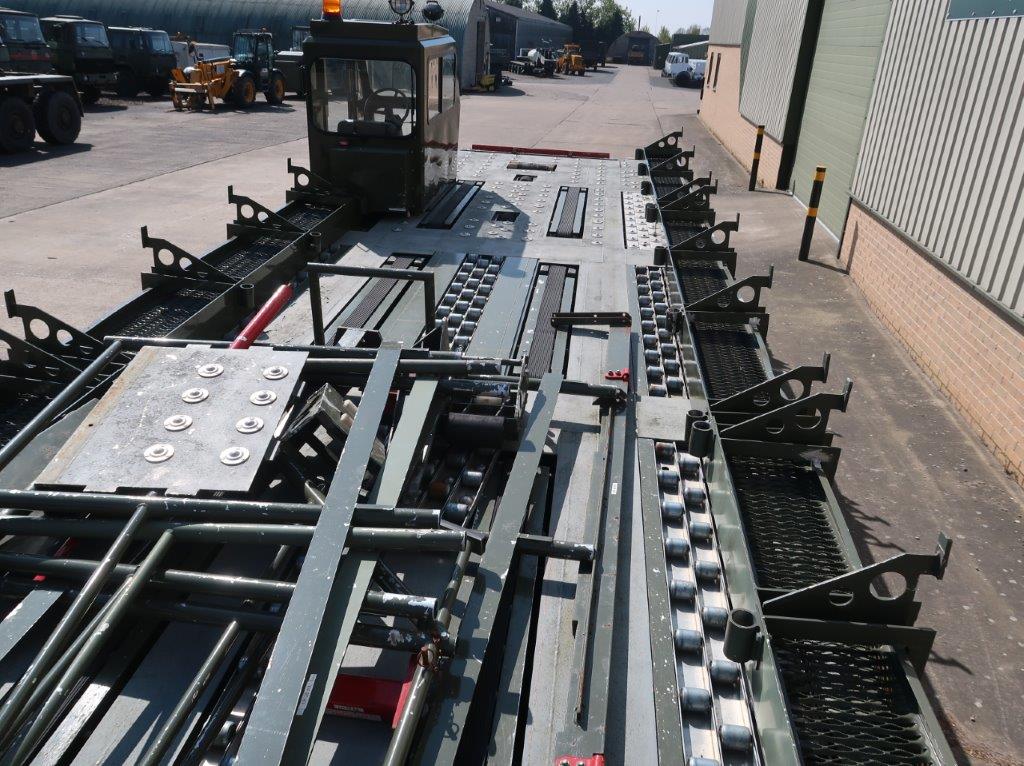

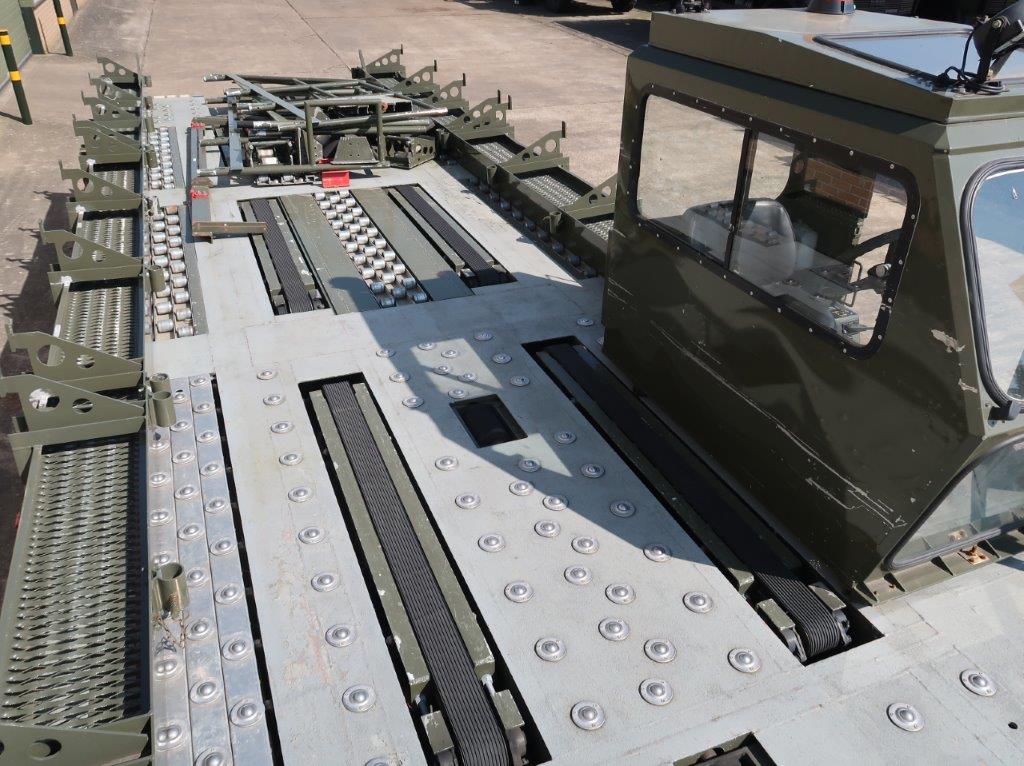

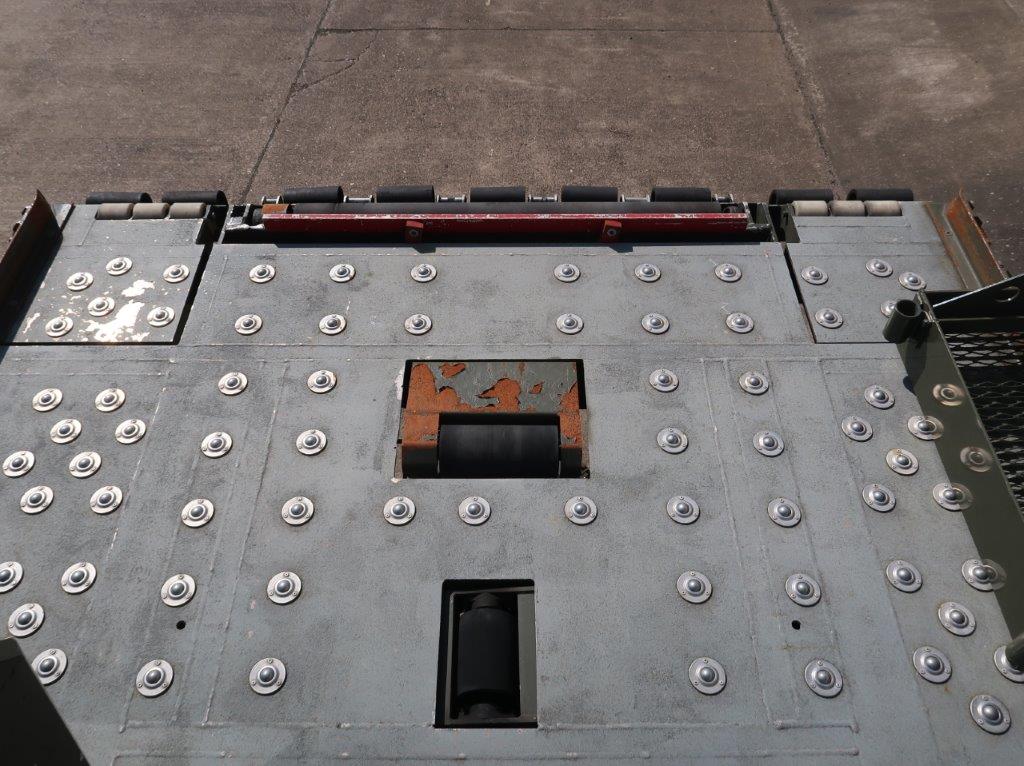

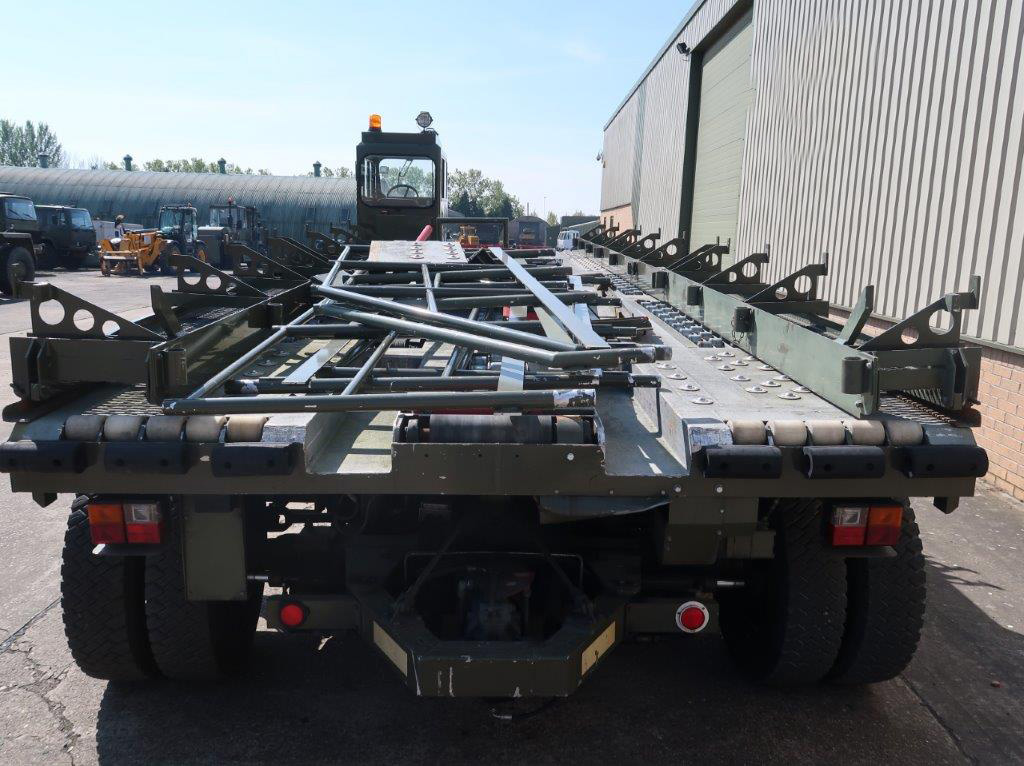

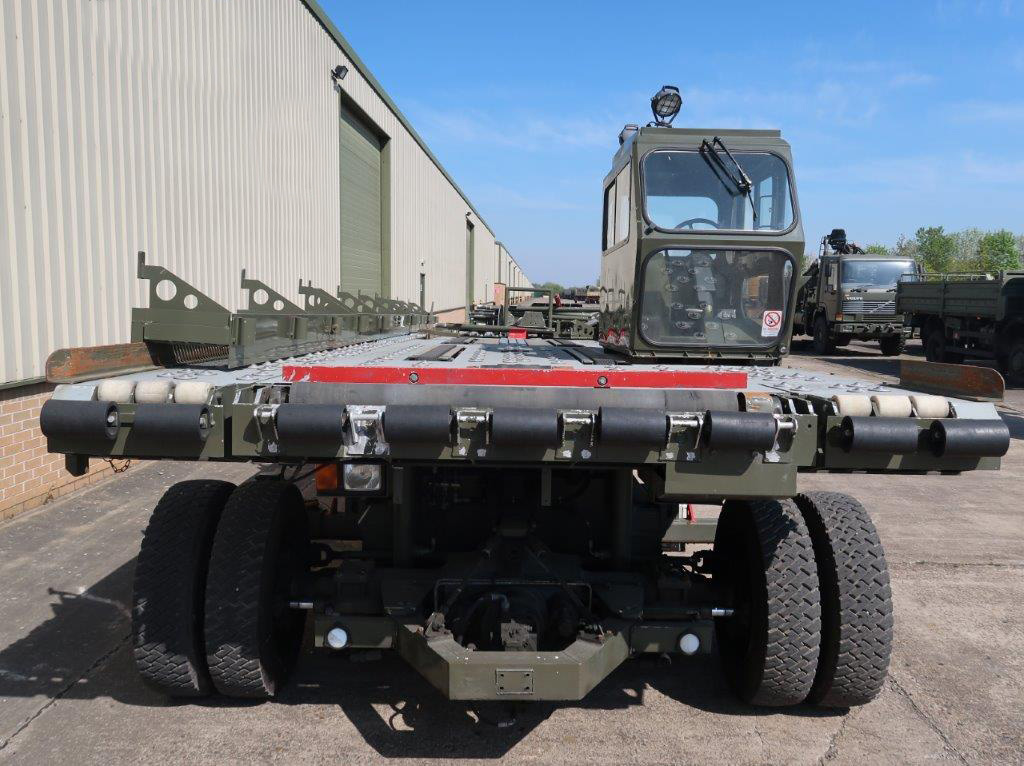

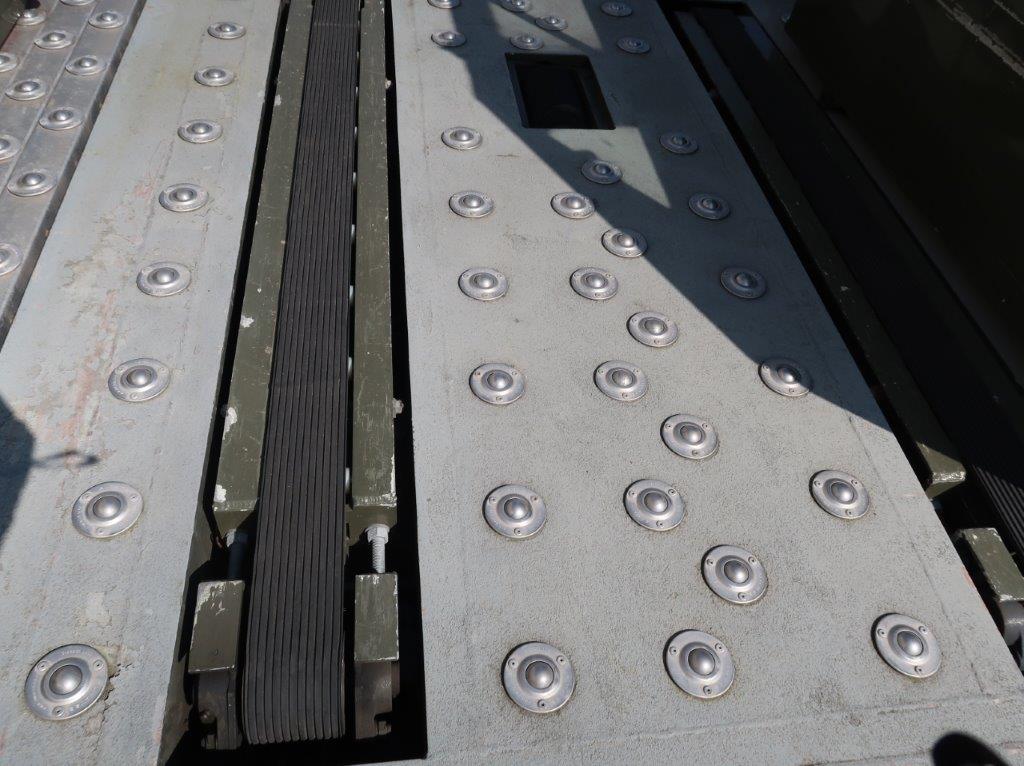

Load platform Length between stops 9,240mm, width between main guides 2,775mm, Width between ?drop in? guides 1,825mm, 4 Zone Operator selectable longitudinal variable speed powered pallet drives, 4 off 108 x 88 inch pallet capacity, powered variable speed pallet side shift, platform pitch ?5?, platform Roll ?5?, platform side shift ?51mm ?0.8?, freight lashings 6 off per side, powered pallet stops, heavy duty rollers and stainless steel ball units for pallets and containerised loads, multiple heavy duty impact resistant powered pick up rollers fitted to platform front and rear, shock absorbing rubber buffers for soft aircraft interface, easily deployable, hinged walkways and safety handrails fitted to both sides of the load platform with adjustable trombone/folding sections to accommodate differing aircraft profiles

CE plated

Like on Facebook
VIDEOS (if available)
Video of Atlas/AMSS K Loader Aircraft Main Deck Loader
CATEGORY Airfield Support
MANUFACTURER Atlas
ENGINE Cummins 6BT Cylinder
GEARBOX
BRAKES
STEERING 2/4 Wheel Steer/Crab steer
TYRES Michelin 255/70R22.5
MAXIMUM LOAD 18,000 Kg
ELECTRICS 24 volts
L x W x H 9.60 M x 3.00 M x 2.50 M Lowered Height
GROSS WEIGHT 11,350Kg

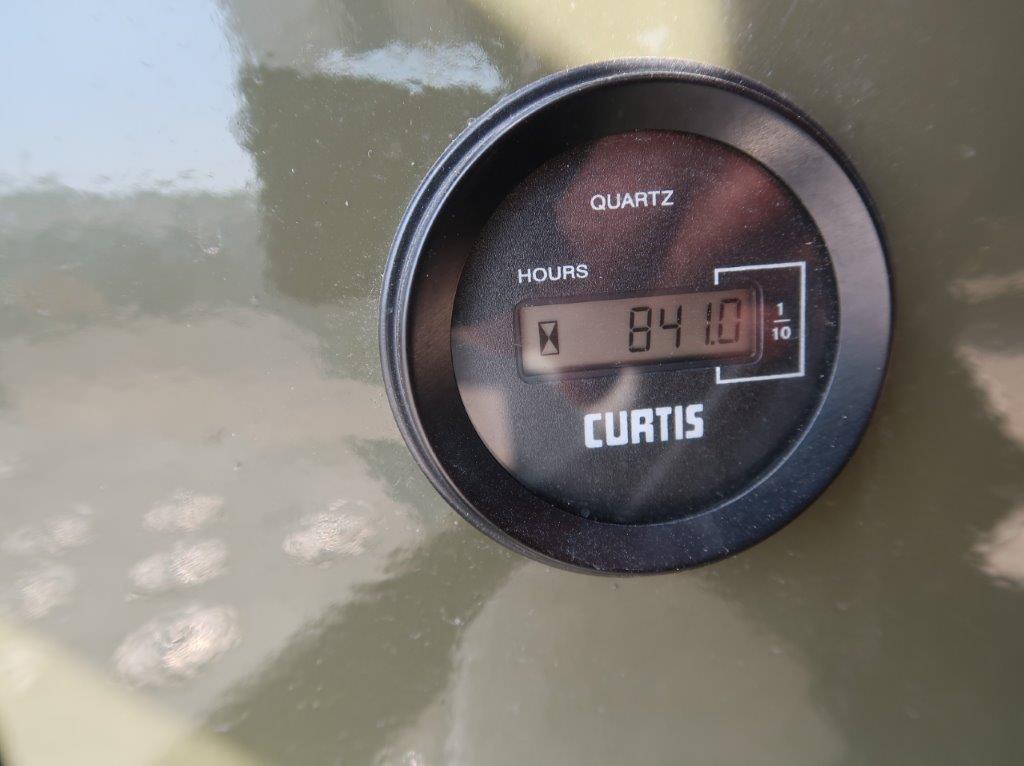

HOURS / MILEAGE 840 Hours ONLY
DATE INTO SERVICE
YEAR OF MANUFACTURE 2006
QTY AVAILABLE 2
EXPORT REQUIREMENTS ...more SIEL
PRICE On Application - click for quote
